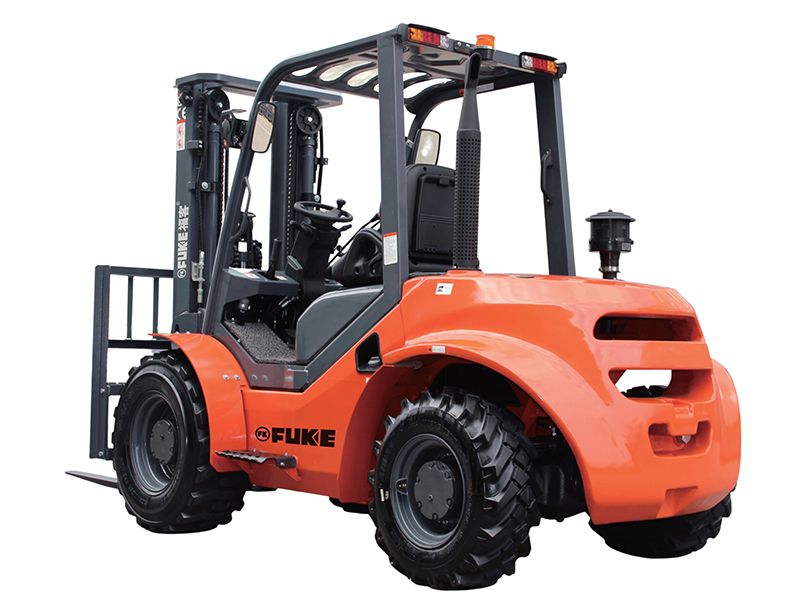

Rough Terrain Forklift, FK11-3Y
Rough Terrain Forklift, FK11-3Y
Basic Information
    • Rated capacity
      3000kg
    • Service weight
      5080kg
    • Rated output
      36.8/2500kW/rpm
Download
Inquiry

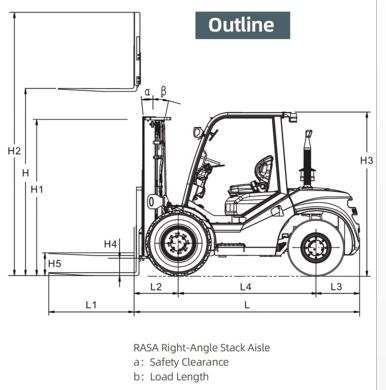

Technical Specification
  • Power source: diesel
  • Rated capacity: 3000kg
  • Load center: 500mm
  • Service weight: 5080kg
  • Tire size (front): 14-17.5-14PR
  • Tire size (rear): 10.0/75-15.3-12PR
  • Front tread: 1217mm
  • Rear tread: 1206mm
  • Wheelbase: 1920mm
  • Fork size (L×W×T): 1220×125×45mm
  • Mast tilt angle (F/R): 10/12deg.
  • Lift height: 3000mm
  • Mast lowered height: 2265mm
  • Free lift height: 165mm
  • Mast extended height: 4342mm
  • Length to face of forks: 3110mm
  • Overall width: 1560mm
  • Overhead guard height: 2260mm
  • Front overhang: 580mm
  • Rear overhang: 610mm
  • Turning radius (outside): 3200mm
  • Ground clearance (bottom of mast): 270mm

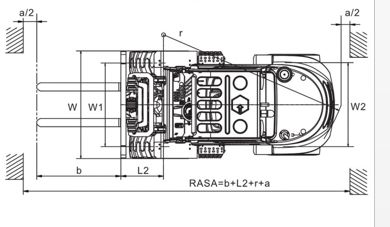

  • Min. intersecting aisle: 2780mm
  • Min. right angle stacking aisle width: 5200mm
  • Max. travel speed (with/without load): 20/21km/h
  • Lifting speed (with/without load): 510/550mm/s
  • Lowering speed (with/without load): ≤600 / ≥300mm/s
  • Max. gradeability (with load): 40%
  • Engine model: Yuchai
  • Rated output: 36.8/2500kW/rpm
  • Rated torque: 186/1600-1800N.m/rpm
  • No. of cylinder: 4
  • Bore×stroke: 98×105mm
  • Displacement: 3.167L
  • Fuel tank capacity: 60L
  • Battery (voltage/capacity): 12/80V/Ah
