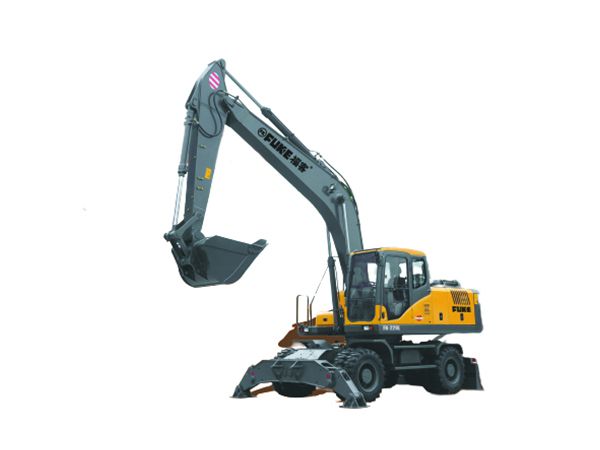

Wheeled Excavator, FK220-9L
Engine | Cummins |
Engine rated power | 124/2050kW/rpm |
Gradeability | 70 % (35°) |
Digging force (stick) | 100.3kN |
Digging force (bucket) | 132.3kN |
Travel speed | 30km/h |
Platform rotation speed | 12.5r/min |

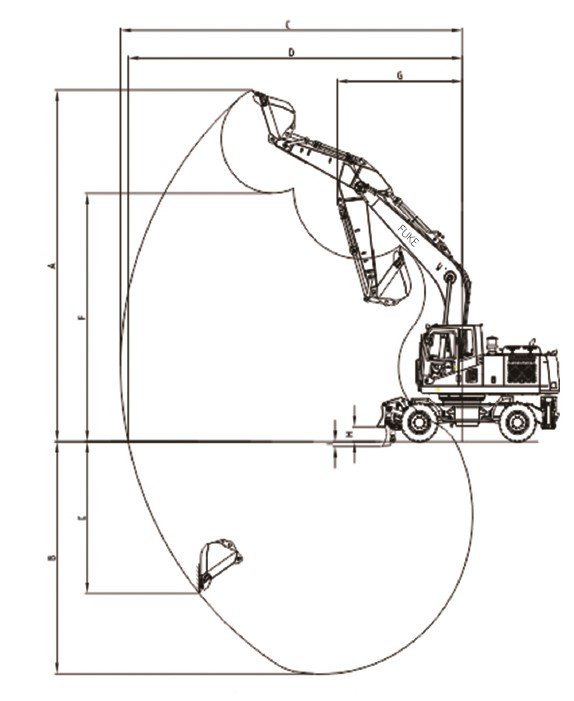

Max. digging height | 9725mm A |
Max. digging depth | 6405mm B |
Max. digging radius | 9911mm C |
Max. digging radius on ground | 9685mm D |
Max. vertical digging depth | 4177mm E |
Max. dumping height | 6882mm F |
Min. turning radius | 3622mm G |

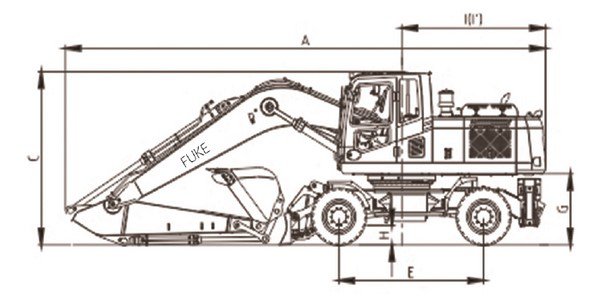

Overall length (transport state) | 9455mm |
Overall width (transport state) | 2530mm |
Overall height (transport state) | 2490mm |
Wheelbase | 2600mm E |
Track width | 1944mm F |
Counterweight ground clearance | 1223mm G |
Min. ground clearance | 350mm H |
Tail length | 2353mm I |
Tail swing radius | 2450mm I’ |

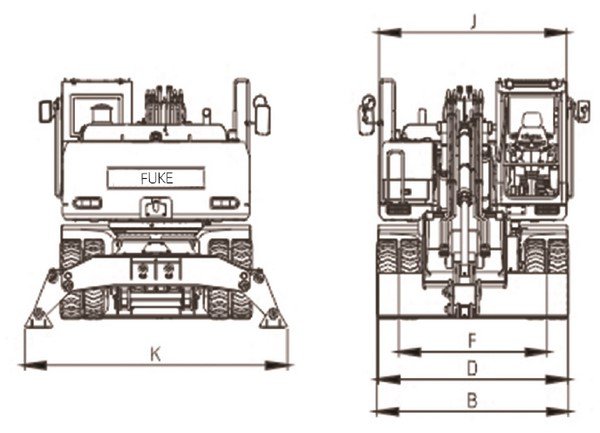

Upper platform width | 2470mm J |
Fuel tank capacity | 295L |
Hydraulic oil tank capacity | 165L |
