Internal Combustion Forklift, FK11-4T
Internal Combustion Forklift, FK11-4T
Basic Information
    • Rated capacity
      4000kg
    • Service weight
      6200kg
    • Rated output
      60/2200kW/rpm
Download
Inquiry

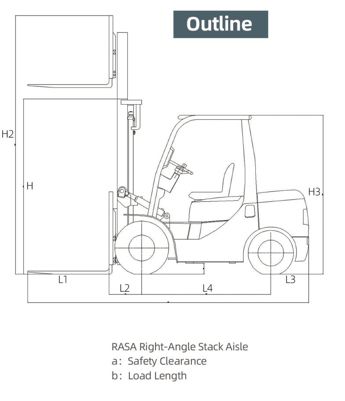

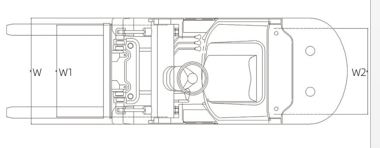

Technical Specification
  • Power source: diesel
  • Rated capacity: 4000kg
  • Load center: 500mm
  • Service weight: 6200kg
  • Tire size (front): 300-15-18PR
  • Tire size (rear): 7.00-12-12PR
  • Front tread: 1180mm
  • Rear tread: 1190mm
  • Wheelbase: 2100mm
  • Fork size (L×W×T): 1070×150×55mm
  • Mast tilt angle (F/R): 6/12deg.
  • Lift height: 3000mm
  • Mast lowered height: 2330mm
  • Free lift height: 150mm
  • Mast extended height: 4165mm
  • Length to face of forks: 3260mm
  • Overall width: 1460mm
  • Overhead guard height: 2340mm
  • Front overhang: 579mm
  • Rear overhang: 580mm
  • Turning radius (outside): 2910mm
  • Ground clearance (bottom of mast): 150mm
  • Min. intersecting aisle: 2920mm
  • Min. right angle stacking aisle width: 4740mm
  • Max. travel speed (with/without load): 19/20km/h
  • Lifting speed (with/without load): 420/430mm/s
  • Lowering speed (with/without load): ≤600 / ≥300mm/s
  • Max. gradeability (with load): 20%
  • Engine model: Yuchai
  • Rated output: 60/2200kW/rpm
  • Rated torque: 300/1600-1800N.m/rpm
  • No. of cylinder: 4
  • Bore×stroke: 98×115mm
  • Displacement: 3.47L
  • Fuel tank capacity: 130L
  • Battery (voltage/capacity): 2×12/80V/Ah
