Self Loading Concrete Mixer, FK33-16

Self Loading Concrete Mixer, FK33-16
Basic Information
    1. Concrete output
      1.6m 3
    1. Operating weight
      5000kg
    1. Max. load
      3540kg
    1. Max. capacity
      90L/min
    1. Max. torque
      237N.m
    1. Max. power
      55kW
Download
Inquiry
Self Loading Concrete Mixer, FK33-16
Engine
  • Model: Yuchai
  • Total displacement, no cylinders: 2700cc, 4 in-line
  • Injection: direct injection with mechanical control
  • Cooling: water cooling, dry air filter
  • Max. power: 55kW (75Hp)
  • Max. torque: 237N.m@2000rpm
Electric System
  • Alternator: 28V, 500Wa (18A)
  • Battery: 2×12V, 60AH (272A)
  • Road light system, rear working lights
Steering
  • Rear wheel steering
Drive
  • Type: 4×4 four-wheel drive
  • Speed: 3 forward gears and 3 reverse gears
  • Low speed: 0-70 Km/h
  • High speed: 0-40Km/h
Axles & Wheels
  • Front wheel is steering with planetary reduction gears on the Isuzu Axle with flanged gearbox
  • Tires: 12-165-12PR
  • Rim: 975
Brakes
  • Internal wheel hub disc service and emergency brakes acting on the 4 wheels, activation with mini servo pump on independent dual circuit.
  • Negative type parking brake, with internal wheel hub discs on the front axle
Water System
  • 24V “Self-priming” volumetric water pump with quick-suction
  • Max. capacity: 90 liters/min
  • One tank with a total capacity of 260kg
Mixing & Unloading
  • Geometrical drum volume: 2200 liters
  • Drum rotation speed: 15rpm
  • Concrete produced: 1.6m³
Hydraulic System
  • Max. flow rate: 20/40 liters/min
  • Max. pressure: 16MPa
Loading Shovel
  • Volumetric capacity: 270 liters
  • No. of loading times: approx. 5
Cab
  • Closed cab with heating system
  • Tilting front window
  • Anatomic seat with flexible suspension and height adjustment
Service Refill Capacities
  • Fuel tank: 110 liters
  • Total hydraulic system capacity: 110 liters
  • Engine oil: 16 liters
Weights
  • Operating weight: 5000kg
  • Max. gross weight: 8500kg
  • Load-carrying weight: 3500kg

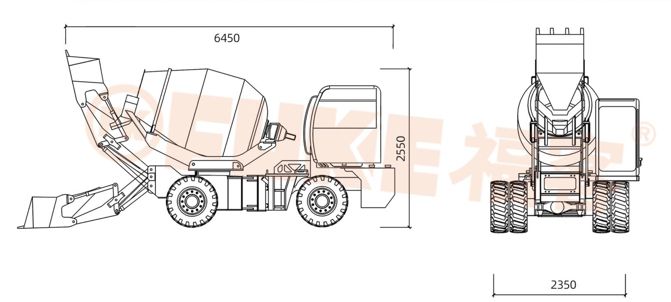

Dimensions
  • Length×Width×Height: 6450×2350×2550mm
