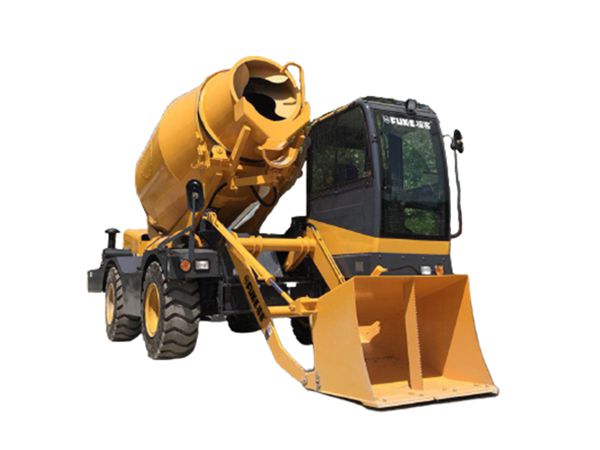

Self Loading Concrete Mixer, FK33-55

Self Loading Concrete Mixer, FK33-55
Basic Information
    1. Concrete output
      5.5m3
    1. Wheelbase
      2450mm
    1. Loading ratio
      78%
    1. Bucket capacity
      650L
    1. Weight
      8600kg
    1. Rated power
      115kW
Download
Inquiry
Self Loading Concrete Mixer, FK33-55
Technical Specifications
  • Drum capacity: 6.8m³
  • Concrete output: 5.5m³
  • Loading ratio: 78%
  • Rotary drum: discharge mouth height of 1.8 meters, 270-degree slewing
  • Production capacity: 20 cubic meters per hour (4 batches/hr)
  • Engine: Yuchai water-cooled diesel engine (4 cylinders), rated power 115kW, 2,200 rpm
  • Transmission: full hydraulic drive, 4-wheel drive
  • Climbing ability: 30%
  • Speed: low speed 0-25km/h, high speed 0-40km/h.
  • Cab: ultra-wide deluxe cab, ROPS type
  • Hydraulic system: two gear pumps for services
  • Joystick: a four-way hydraulic pilot control with an electric control button control
  • Bucket capacity: 650L
  • Bucket type: hydraulic opening gate
  • Chute: equipped with two removable shaft pins to increase the discharge height
  • Water system: self-priming hydraulic driven pump, electronic water flow monitor, high pressure washing unit
  • Brake: internal wheel brake and emergency brake acting on 4 wheels, negative pressure type parking brake
  • Steering: hydraulic steering, front wheel steering
  • Tire: 16/70-20 wire tires
  • Power: 24V
  • Tanks: 2×210L water tank, 125L diesel tank, 130L hydraulic oil tank
  • Weight: 8600kg

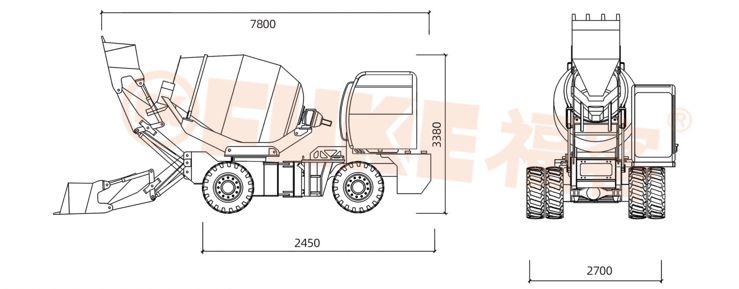

  • Dimensions (L×W×H): 7800×2700×3380mm
  • Wheelbase: 2450mm
  • Metering: electronic weighing system (optional)
