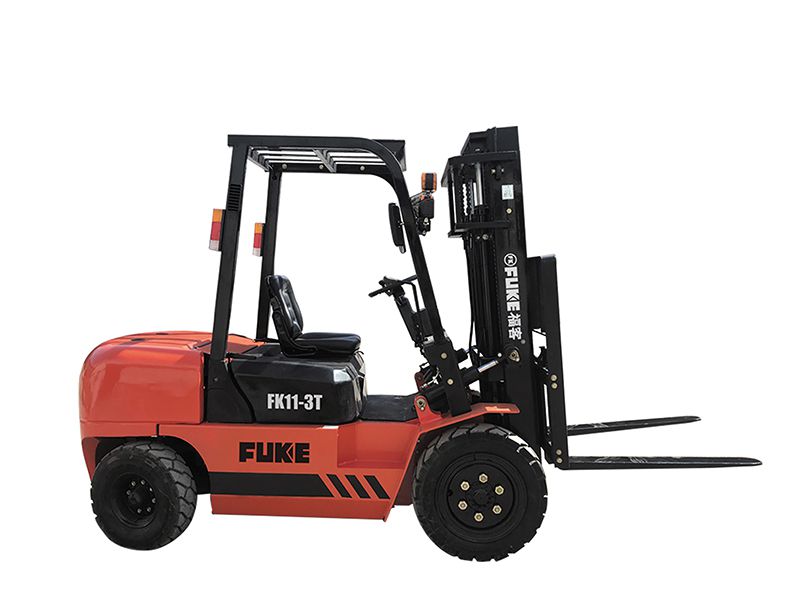

Internal Combustion Forklift, FK11-3T
Internal Combustion Forklift, FK11-3T
Basic Information
    • Rated capacity
      3000kg
    • Service weight
      4250kg
    • Rated output
      36.8/2650kW/rpm
Download
Inquiry

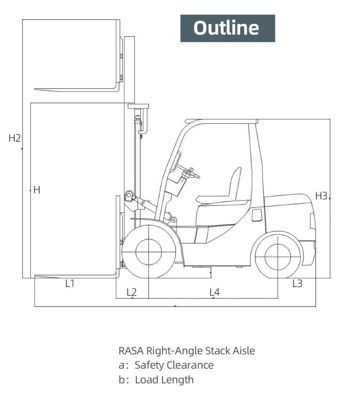

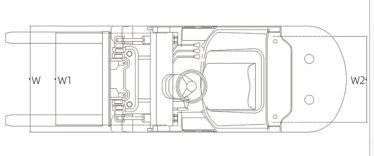

Technical Specification
  • Power source: diesel
  • Rated capacity: 3000kg
  • Load center: 500mm
  • Service weight: 4250kg
  • Tire size (front): 28x9-15-14PR
  • Tire size (rear): 6.50-10-10PR
  • Front tread: 1000mm
  • Rear tread: 970mm
  • Wheelbase: 1700mm
  • Fork size (L×W×T): 1070×125×45mm
  • Mast tilt angle (F/R): 6/12deg.
  • Lift height: 3000mm
  • Mast lowered height: 2115mm
  • Free lift height: 125mm
  • Mast extended height: 4150mm
  • Length to face of forks: 2730mm
  • Overall width: 1225mm
  • Overhead guard height: 2150mm
  • Front overhang: 480mm
  • Rear overhang: 550mm
  • Turning radius (outside): 2420mm
  • Ground clearance (bottom of mast): 140mm
  • Min. intersecting aisle: 2490mm
  • Min. right angle stacking aisle width: 4110mm
  • Max. travel speed (with/without load): 19/20km/h
  • Lifting speed (with/without load): 510/550mm/s
  • Lowering speed (with/without load): ≤600 / ≥300mm/s
  • Max. gradeability (with load): 20%
  • Engine model: Yuchai
  • Rated output: 36.8/2650kW/rpm
  • Rated torque: 156/1700-1900N.m/rpm
  • No. of cylinder: 4
  • Bore×stroke: 90×105mm
  • Displacement: 2.67L
  • Fuel tank capacity: 60L
  • Battery (voltage/capacity): 12/80V/Ah
Internal Combustion Forklift, FK11-3T Internal Combustion Forklift, FK11-3T Internal Combustion Forklift, FK11-3T Internal Combustion Forklift, FK11-3T
