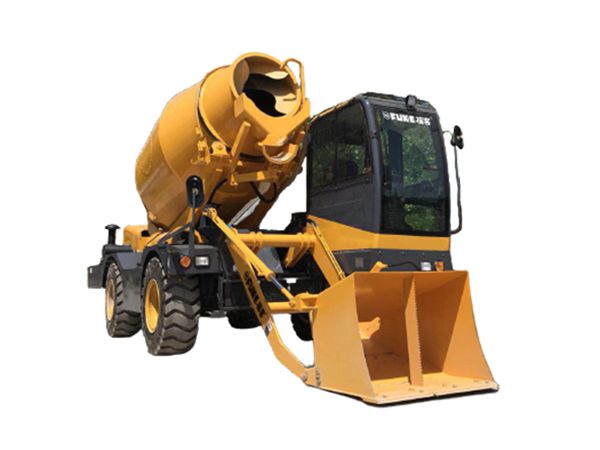

Self Loading Concrete Mixer, FK33-40
- Drum capacity: 5.5m³
- Concrete output: 4m³
- Loading ratio: 76%
- Rotary drum: discharge mouth height of 1.8 meters, 290-degree slewing
- Production capacity: 16 cubic meters per hour (4 batches/hr)
- Engine: Yuchai YC4A125Z water-cooled diesel engine (4 cylinders), rated power 92kW, 2,200 rpm
- Transmission: full hydraulic drive, 4-wheel drive
- Climbing ability: 30%
- Speed: low speed 0-25km/h, high speed 0-45km/h.
- Cab: ultra-wide deluxe cab, ROPS type
- Hydraulic system: two gear pumps for services
- Joystick: a four-way hydraulic pilot control with an electric control button control
- Bucket capacity: 650L
- Bucket type: hydraulic opening gate
- Chute: equipped with two removable shaft pins to increase the discharge height
- Water system: self-priming hydraulic driven pump, electronic water flow monitor, high pressure washing unit
- Brake: internal wheel brake and emergency brake acting on 4 wheels, negative pressure type parking brake
- Steering: hydraulic steering, front wheel steering
- Tire: 16/70-20 wire tires
- Power: 24V
- Tanks: 2×210L water tank, 125L diesel tank, 130L hydraulic oil tank
- Weight: 7600kg

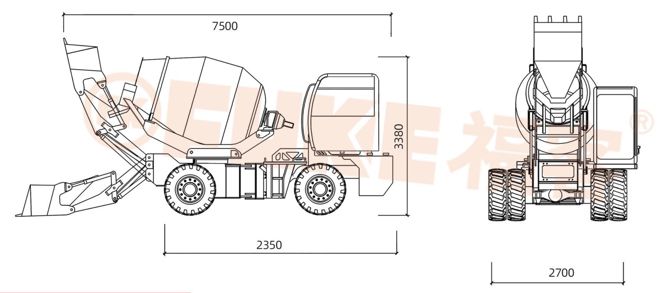

- Dimensions (L×W×H): 7500×2700×3380mm
- Wheelbase: 2350mm
- Metering: electronic weighing system (optional)
