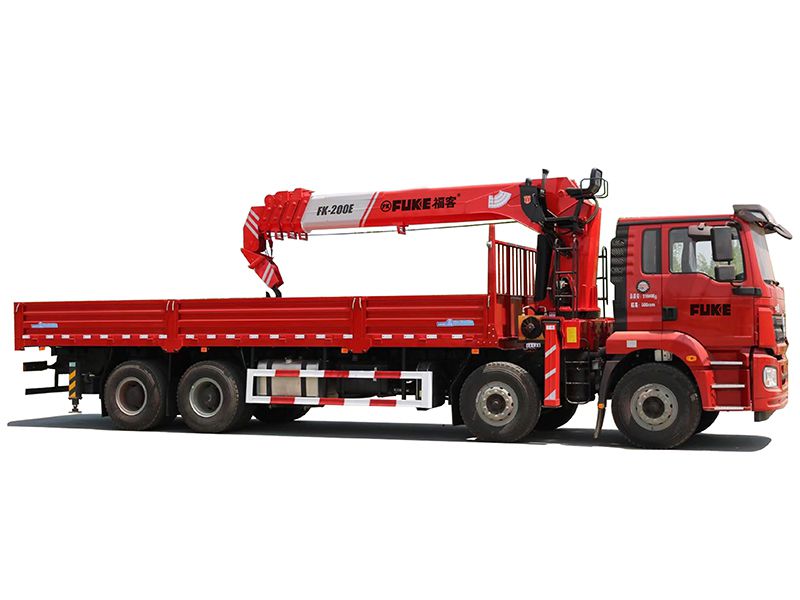

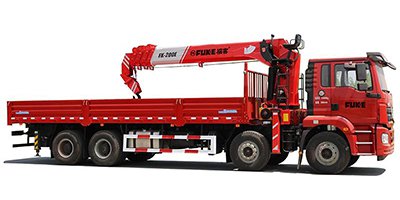

Boom Truck Crane, FK-200E
- Rated lifting moment: 50mt
- Rated lifting capacity: 20000kg (2.5m)
- Max. outreach: 21.2m
- Max. lines of hook: 6
- Slewing angle: 360° (continuous)
- Boom raising angle: 0-75°
- Max. lifting height (from the ground when outriggers are fully extended): 23.2m
- Length of boom (retracted): 6.25m
- Length of boom (fully extended): 21.6m
- Boom sections: 5
- Outrigger span (fully extended): 7.25m
- Rated flow rate: 80-110L/min
- Operating pressure: 32Mpa
- Rated oil tank capacity: 300L
- Crane moment (dynamic): 913.8kN.m 93.1mt
- Torsional moment (dynamic): 52.5kN.m 5.4mt
- Crane weight: 6800kg (high seat)
