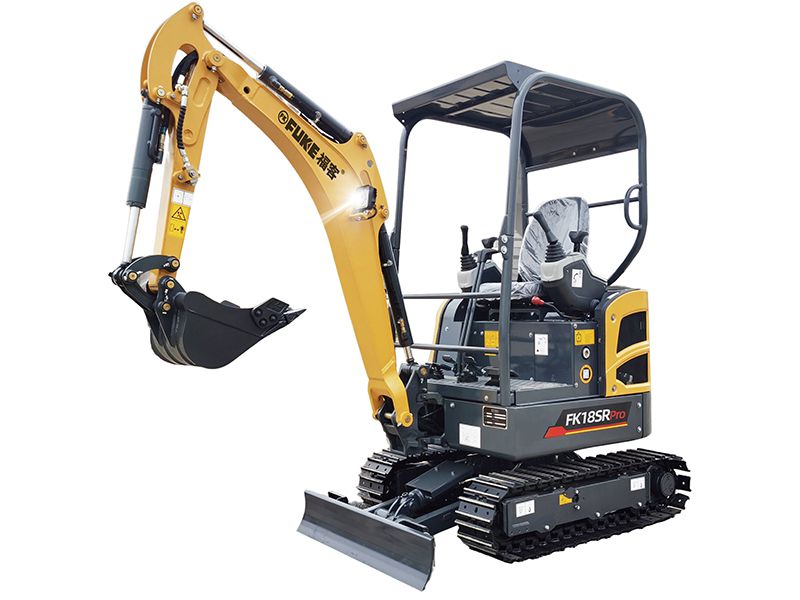

Mini Excavator, FK18SRPRO

Mini Excavator, FK18SRPRO
Basic Information
    1. Total weight
      1880kg
    1. Standard bucket capacity
      0.05m³
    1. Rated power
      14.5/2400kW/rpm
Download
Inquiry
Performance Parameters
Engine Yanmar
Engine rated power 14.5/2400kW /rpm
Gradeability 30°
Digging force (stick) 8.5kN
Digging force (bucket) 15.5kN
Travel speed 2/4km/h
Platform rotation speed 8.5-10.5rpm

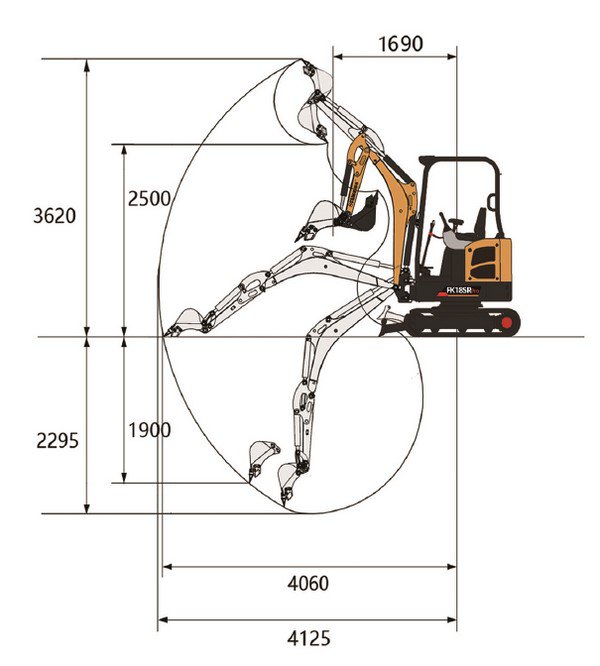

Job Parameters
Max. digging height 3620mm
Max. digging depth 2295mm
Max. digging radius 4125mm
Max. digging radius on ground 4060mm
Max. dumping height 2500mm
Min. turning radius 1690mm
Max. vertical digging depth 1900mm

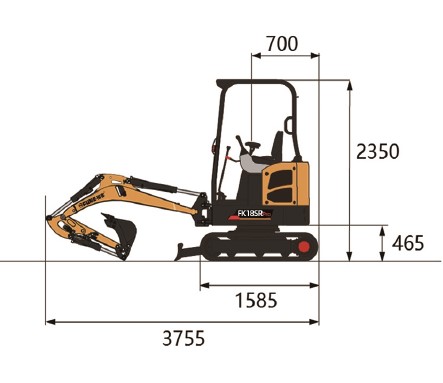

Shipping Dimensions
Overall length
(transport state)
3755mm
Overall width
(transport state)
1080mm
Overall height
(transport state)
2350mm
Other Parameters

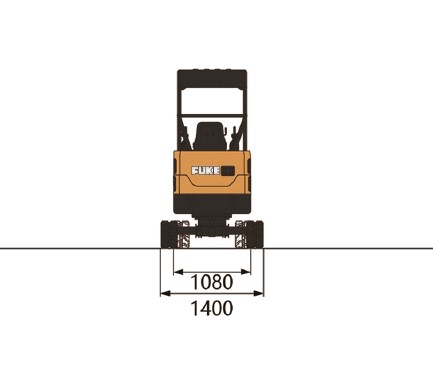

Track width 1080/1400mm
Track length 1585mm
Min. ground clearance 145mm
Counterweight ground clearance 465mm
Tail turning radius 700mm
Fuel tank capacity 23 L
Hydraulic oil tank capacity 20 L
Mini Excavator, FK18SRPRO Mini Excavator, FK18SRPRO Mini Excavator, FK18SRPRO
