Amphibious Excavator, FK80-9C
Engine | Yanmar |
Engine rated power | 46.3/2200kW /rpm |
Gradeability | 35° |
Digging force (stick) | 38kN |
Digging force (bucket) | 56kN |
Travel speed | 2.6/3.9km/h |
Main traction force | 68kN |
Platform rotation speed | 10-13rpm |

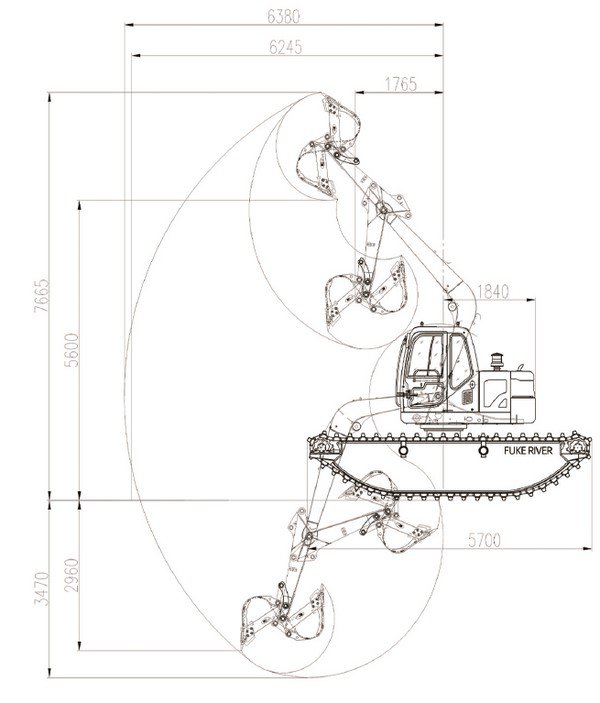

Max. digging height | 7665mm |
Max. digging depth | 3470mm |
Max. digging radius | 6380mm |
Max. digging radius on ground | 6245mm |
Max. dumping height | 5600mm |
Min. turning radius | 1840mm |
Max. vertical digging depth | 2960mm |
Overall length (transport state) | 7465mm |

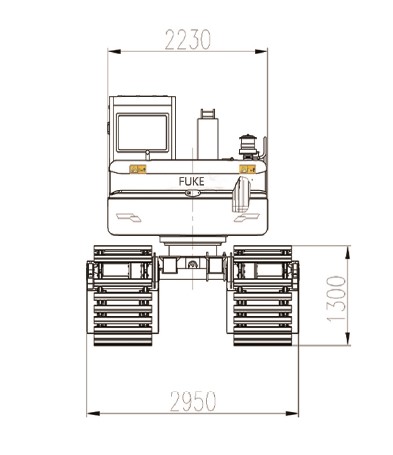

Overall width (transport state) | 2950mm |
Overall height (transport state) | 3215mm |
Track width | 2230mm |
Track length | 5700mm |
Min. ground clearance | 1300mm |
Counterweight ground clearance | 1710mm |
Tail turning radius | 1840mm |
Fuel tank capacity | 151 L |
Hydraulic oil tank capacity | 125 L |
