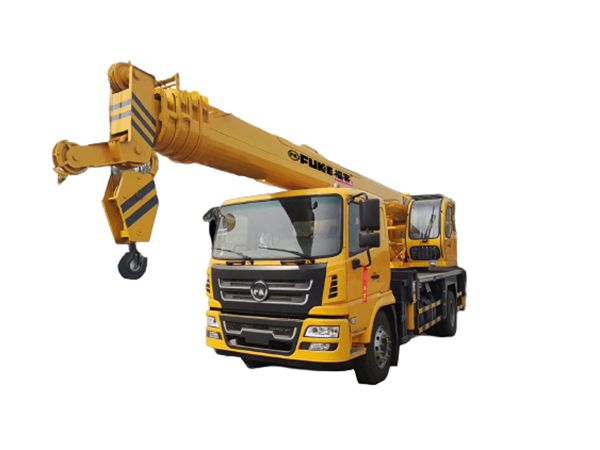

Truck Crane, FK-16T
-
- Main winch
- single rope lifting speed 0-120m/min, diameter 14mm, length 135m, maximum single rope pulling force 3.2T
-
- Auxiliary winch
- single rope lifting speed 0-120m/min, diameter 14mm, length 70m, maximum single rope pulling force 3.2T
-
- Slewing speed
- 2.5r/min
-
- Boom elevation angle range
- 0-80°

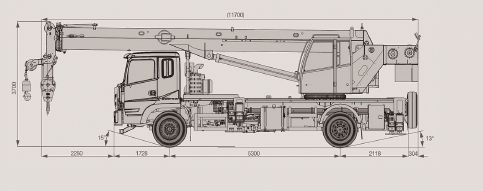

- Overall dimensions (L×W×H): 11700×2500×3700mm
- Wheelbase: 5300mm
- Engine model: Yuchai
- Engine rated output power: 192/2300kW/rpm
- Engine maximum output torque: 1000/(1300-1500)N.m/rpm
- Gross vehicle weight: 20600kg
- Max. travel speed: >95km/h
- Min. turning radius: 10m
- Min. ground clearance: 275mm
- Approach angle: 18°
- Departure angle: 11°
- Braking distance (vehicle speed is 30km/h): 8m
- Max. gradeability: 48%
- Fuel consumption (per 100km): 30L
- Max. rated lifting capacity: 16T
- Min. rated range: 3m
- Max. lifting moment: 735/480kN.m

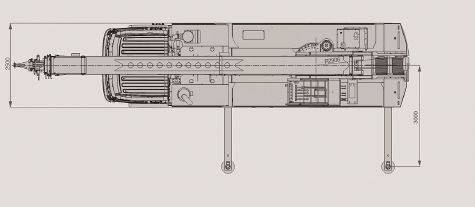

- Outrigger span (transversal×longitudinal): 6×4.98m
- Lifting height (base boom/full-extend boom): 10.7/32.5m
- Boom length (base boom/full-extend boom): 10/32m
- Max. single rope lifting speed of main winch (no load): 120m/min
- Full extension/retraction time of boom: 40/35s
- Full lifting/descending time of boom: 40/50s
- Slewing speed: 2.5r/min
- Horizontal outrigger full extension/retraction time: 20/20s
- Vertical outrigger full retraction/releasing time: 20/20s
