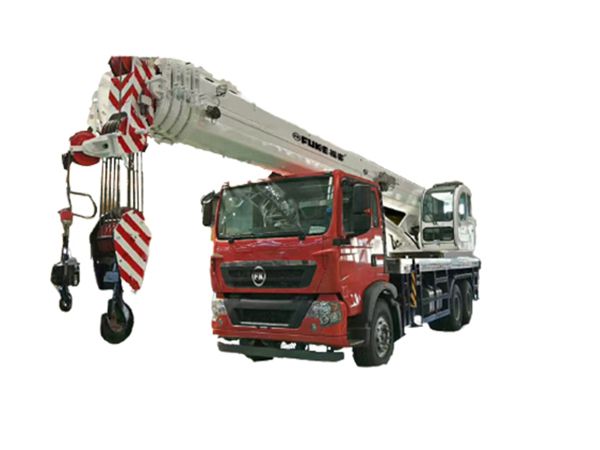

Truck Crane, FK-25T
-
- Main winch
- single rope lifting speed 0-140m/min, diameter 16mm, length 165m, maximum single rope pulling force 5T
-
- Auxiliary winch
- single rope lifting speed 0-140m/min, diameter 16mm, length 95m, maximum single rope pulling force 5T
-
- Slewing speed
- 0-2.5r/min
-
- Boom elevation angle range
- -2-80°

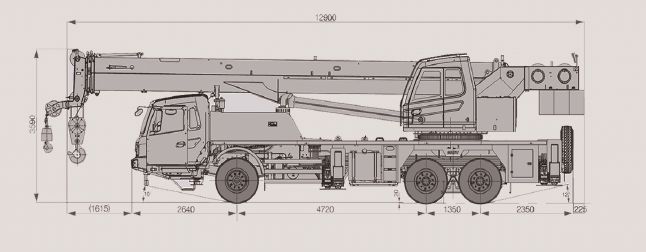

- Overall dimensions (L×W×H):12900×2500×3590mm
- Wheelbase: 4720mm
- Engine model: Yuchai
- Engine rated output power: 199/2300kW/rpm
- Engine maximum output torque: 1160/(1200-1700)N.m/rpm
- Gross vehicle weight: 31300kg
- Max. travel speed: 85km/h
- Min. turning radius: 10.5m
- Min. ground clearance: 250mm
- Approach angle: 10°
- Departure angle: 12°
- Braking distance (vehicle speed is 30km/h): ≤10m
- Max. gradeability: 44%
- Fuel consumption (per 100km): 31L
- Max. rated lifting capacity: 25T
- Min. rated range: 3m
- Max. lifting moment: 1103/686kN.m

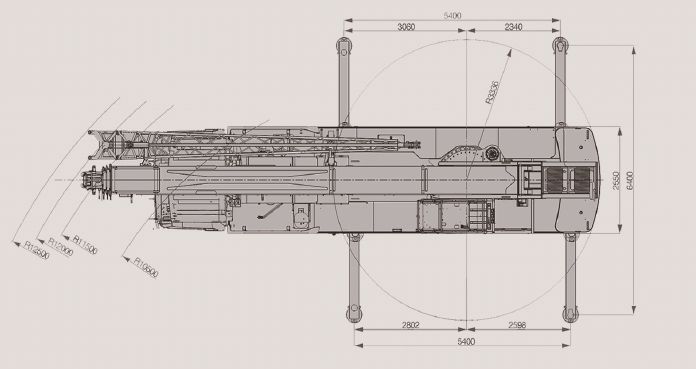

- Outrigger span (transversal×longitudinal): 6.4×5.4m
- Lifting height (base boom/full-extend boom): 11.3/35.5m
- Boom length (base boom/full-extend boom): 10.8/35m
- Max. single rope lifting speed of main winch (no load): 140m/min
- Full extension/retraction time of boom: 45/45s
- Full lifting/descending time of boom: 30/50s
- Slewing speed: 0-2.5r/min
- Horizontal outrigger full extension/retraction time: 35/20s
- Vertical outrigger full retraction/releasing time: 35/20s
