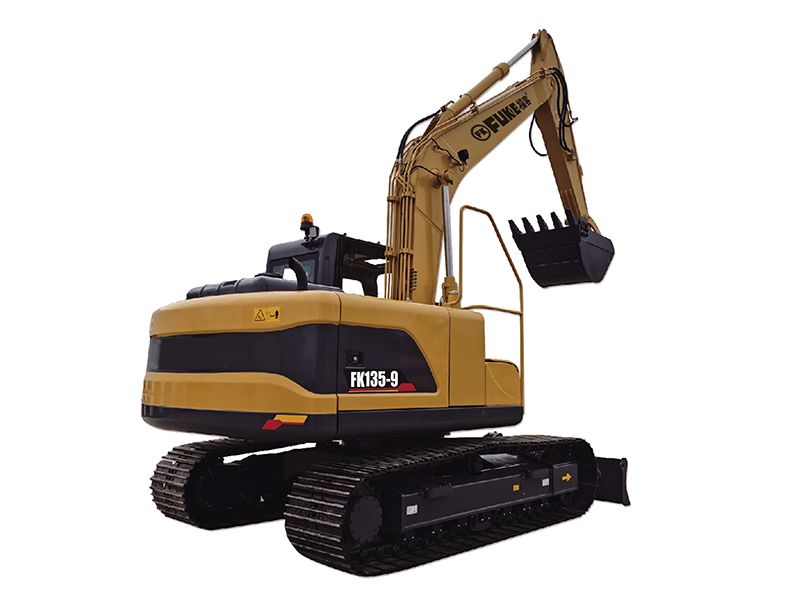

Crawler Excavator, FK135-9
Engine | Cummins |
Engine rated power | 86/2200kW /rpm |
Gradeability | 35° |
Digging force (stick) | 75.8kN |
Digging force (bucket) | 106kN |
Travel speed | 3.1/5.0km/h |
Main traction speed | 121kN |
Platform rotation speed | 11rpm |

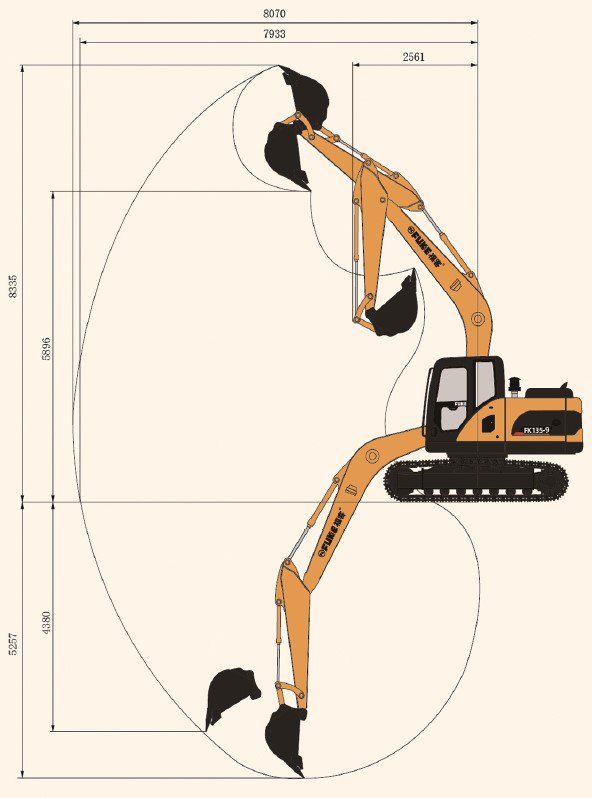

Max. digging height | 8335mm |
Max. digging depth | 5257mm |
Max. digging radius | 8070mm |
Max. digging radius on ground | 7933mm |
Max. dumping height | 5896mm |
Min. turning radius | 2561mm |
Max. vertical digging depth | 4380mm |

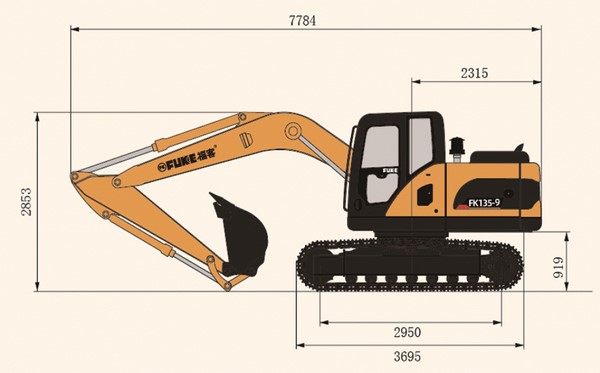

Overall length (transport state) | 7784mm |

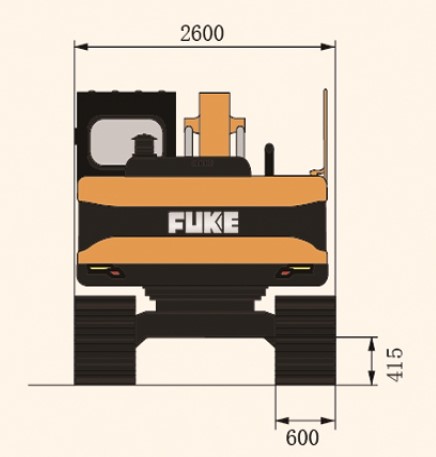

Overall width (transport state) | 2530mm |
Overall height (transport state) | 2853mm |
Track width | 2500mm |
Track length | 3695mm |
Track shoe width | 500mm |
Min. ground clearance | 415mm |
Counterweight ground clearance | 919mm |
Tail turning radius | 2315mm |
Sprocket idler center | 2950mm |
Fuel tank capacity | 270L |
Hydraulic oil tank capacity | 105L |
