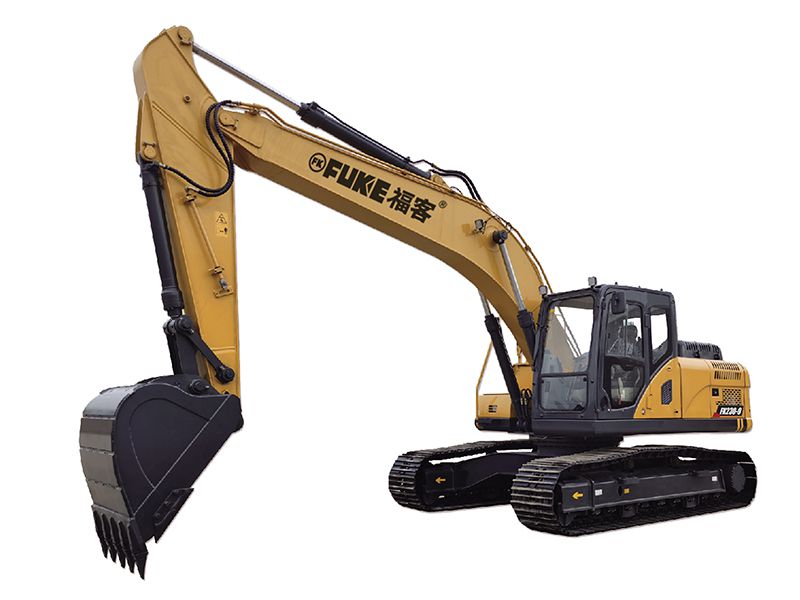

Crawler Excavator, FK230-9

Crawler Excavator, FK230-9
Basic Information
    1. Total weight
      23100kg
    1. Standard bucket capacity
      1.08m³
    1. Rated power
      124/2050kW/rpm
Download
Inquiry
Performance Parameters
Engine Cummins
Engine rated power 124/2050kW /rpm
Gradeability 35°
Digging force (stick) 102kN
Digging force (bucket) 139.3kN
Travel speed 3.4/5.2km/h
Main traction force >121kN
Platform rotation speed 11-13rpm

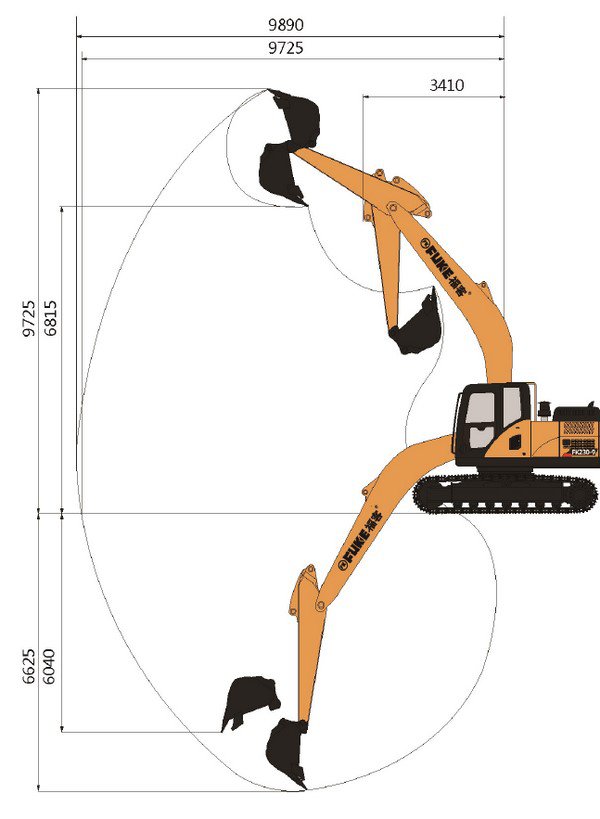

Job Parameters
Max. digging height 9725mm
Max. digging depth 6625mm
Max. digging radius 9890mm
Max. digging radius on ground 9725mm
Max. dumping height 6815mm
Min. turning radius 3410mm
Max. vertical digging depth 6040mm

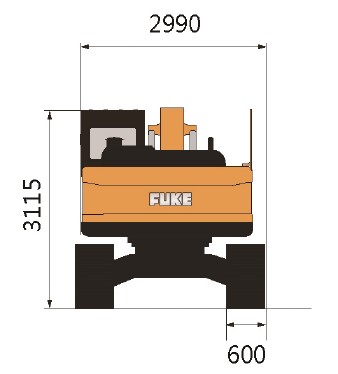

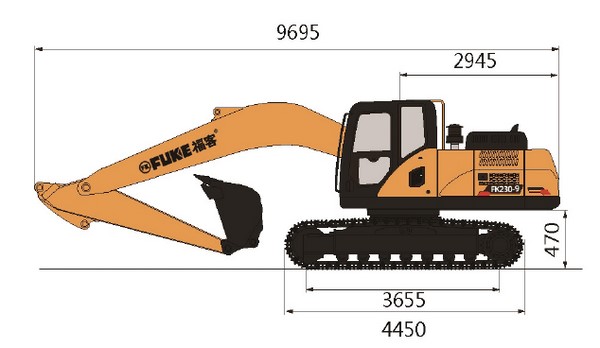

Shipping Dimensions
Overall length (transport state) 9695mm
Overall width (transport state) 2990mm
Overall height (transport state) 3115mm
Other Parameters
Track width 2990mm
Track length 4450mm
Track shoe width 600mm
Min. ground clearance 470mm
Counterweight ground clearance 1070mm
Tail turning radius 2945mm
Sprocket idler center 3655mm
Fuel tank capacity 350L
Hydraulic oil tank capacity 210L
Crawler Excavator, FK230-9 Crawler Excavator, FK230-9 Crawler Excavator, FK230-9
